ADP-1

$89.27 $CA

~~$0.00 $CA~~ $89.27 $CA

Sale Sold out

Shipping calculated at checkout.

Plug Type Type2 to Type1

SPECIFICATIONS

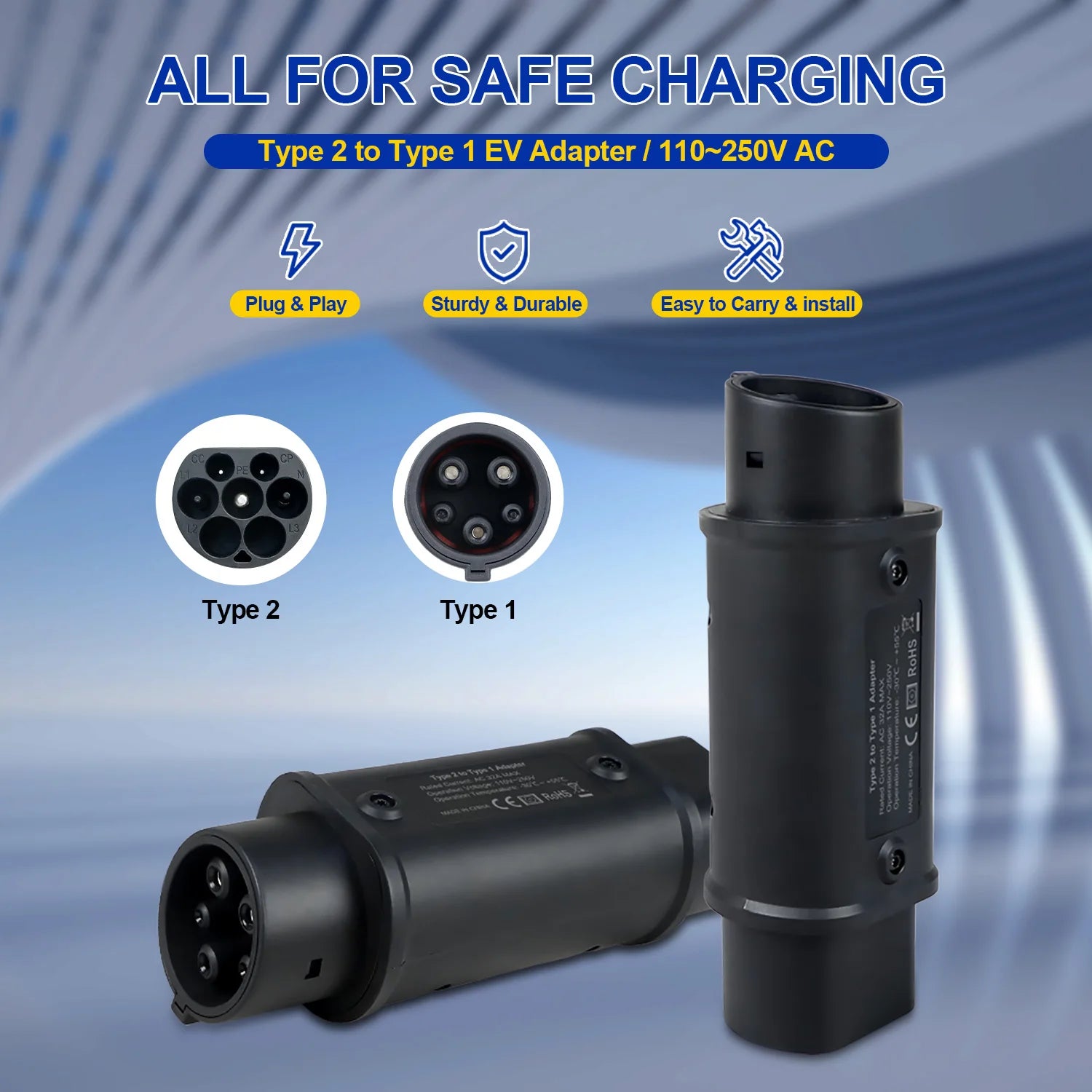

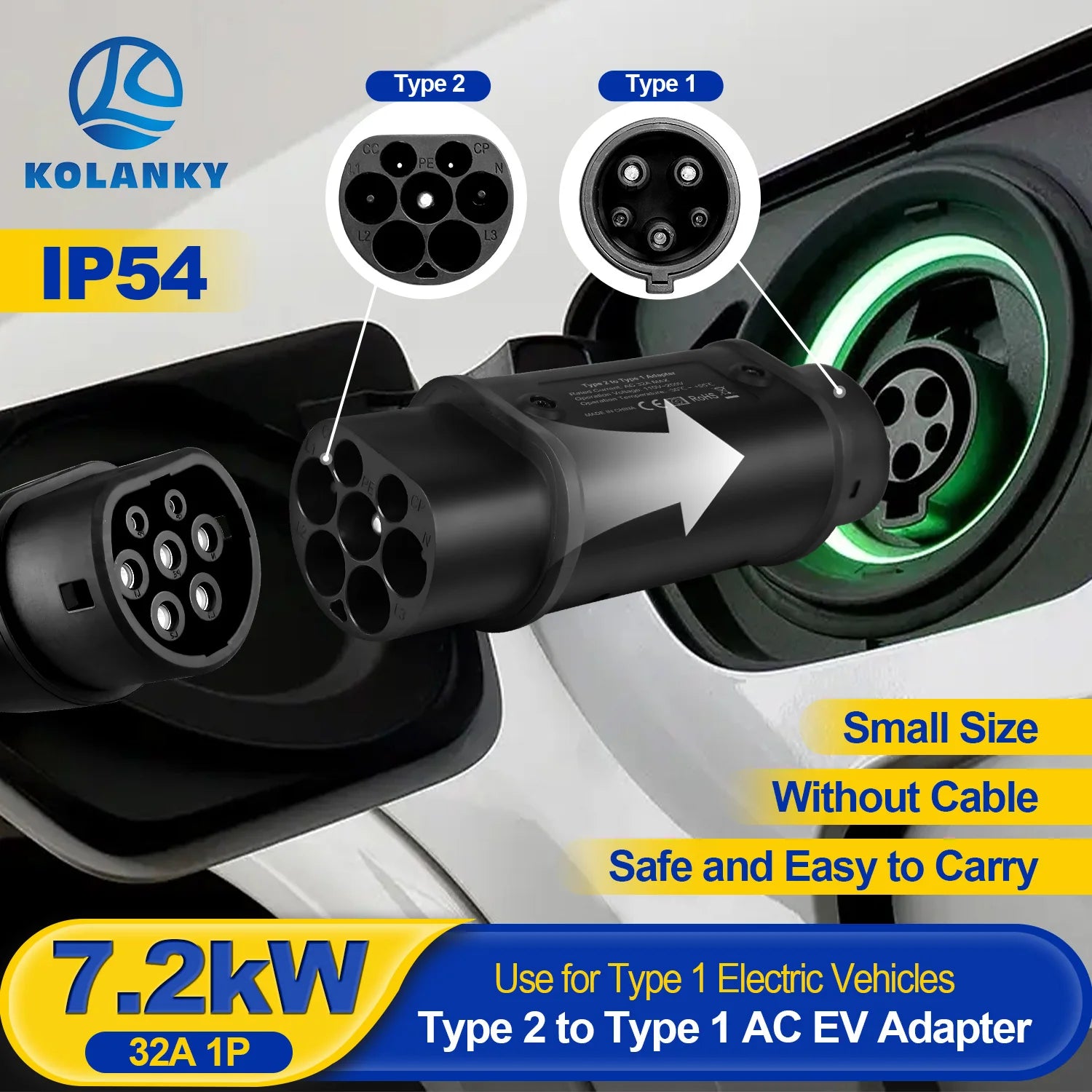

Adapter Type: Type 2 to Type 1 EV Adapter

Brand Name: KOLANKY

Cable Length: No Cable

Choice: yes

Current: 32A max

Flame retardant grade: UL94 V-0

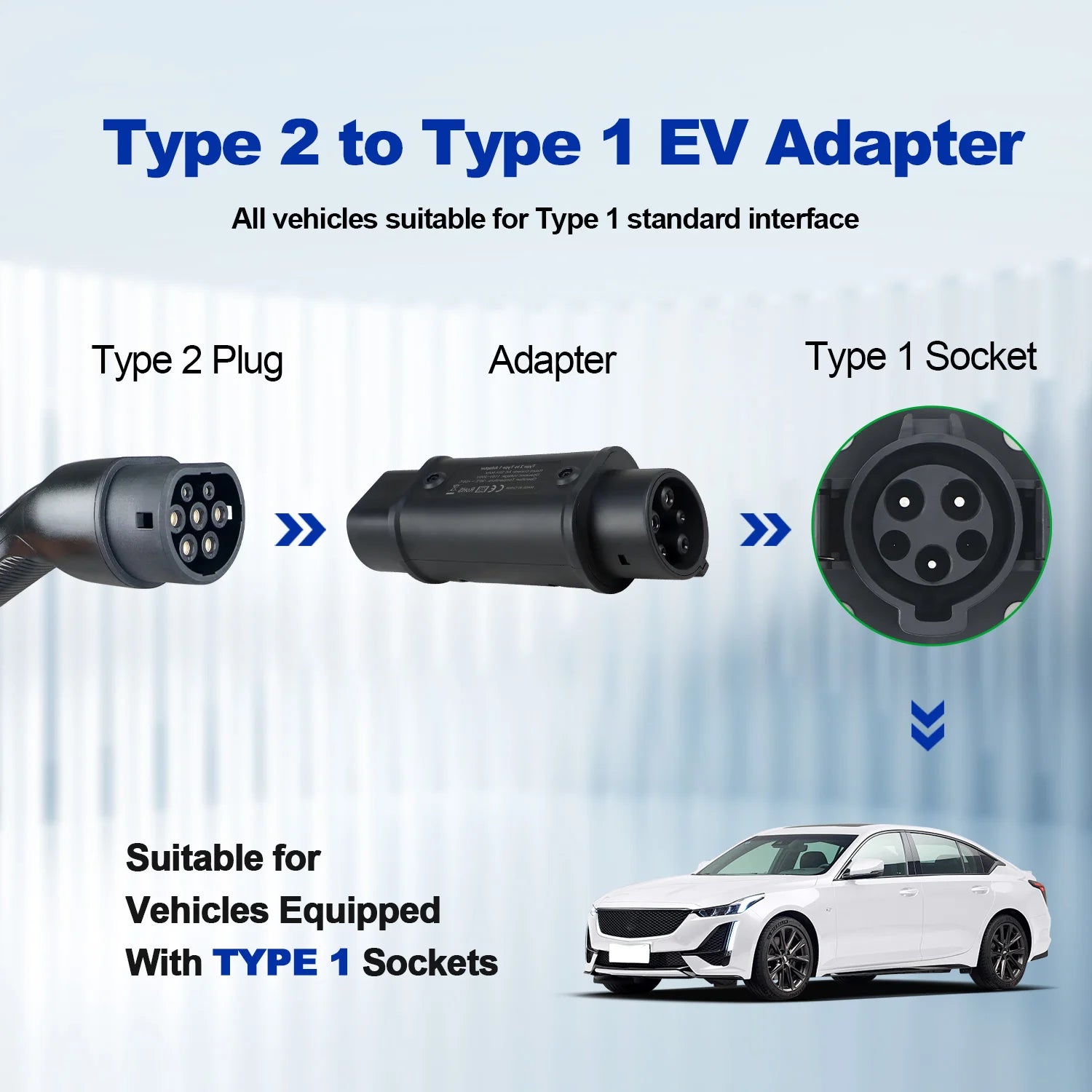

Function 1: Type 2 Side Connect to Type 2 Female EV Plug

Function 2: Type 1 Side Connect to Type 1 Standard EV Socket

Hign-concerned Chemical: None

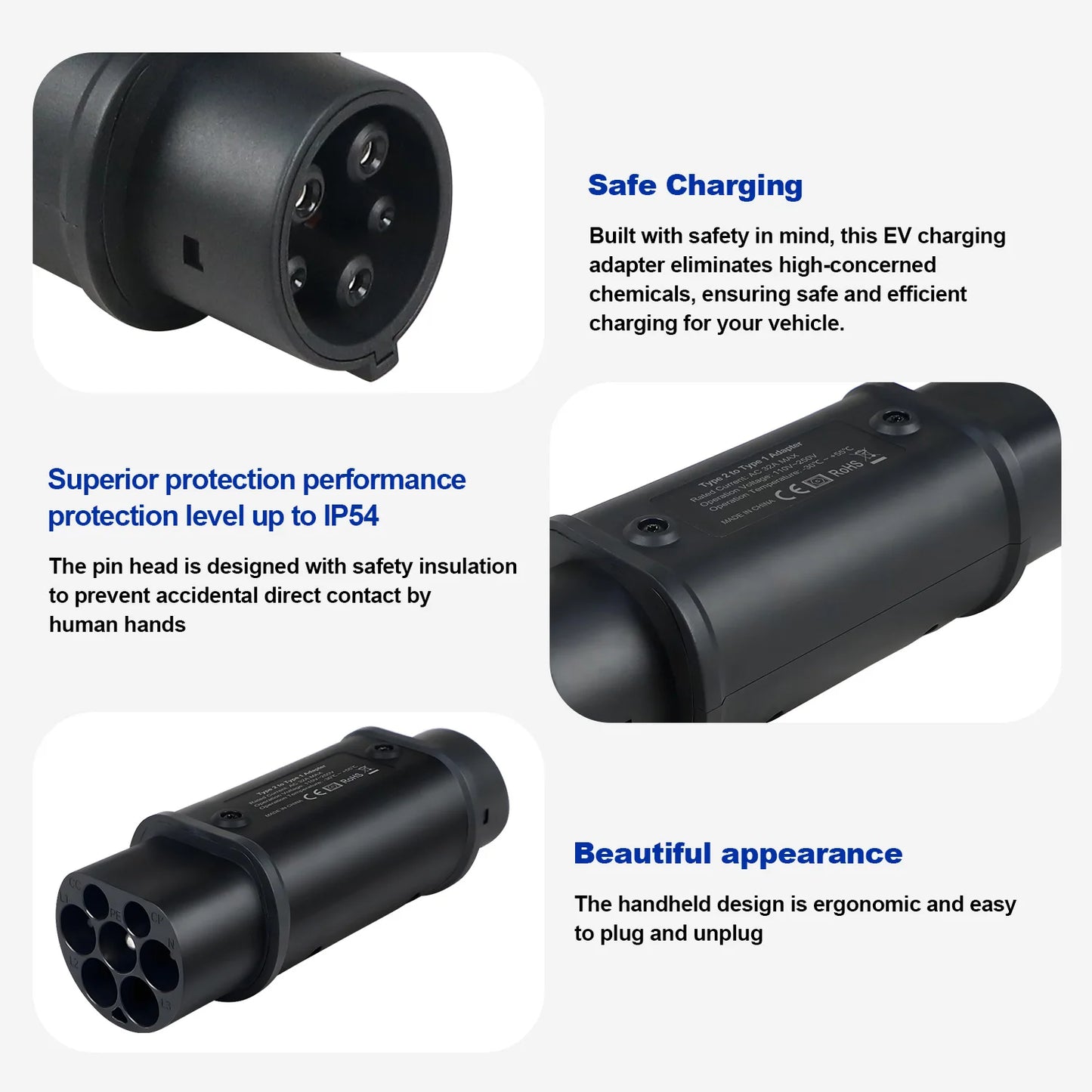

IP Rating: IP54

Material: PC+ABS

Operating Temperature: -30℃ to 50℃

Power (W): 7.2KW max

Terminal: Copper alloy, silver plating

Voltage: 110-250V

Weight: 0.378kg

FAQ

Question 1

Answer

Package included

Control Box Function:

Leakage protection
Overvoltage or undervoltage protection
Overload protection
Lightning protection
Overheat protection
Change the current: 8A/10A/13A/16A (Current Adjustable, Memory Charging)
Simplex

Packing List:

EV Charger G-1™ * 1
Potable Control Box * 1
3.5 m Cable * 1
Schuko Plug *1
Bag *1 (Gift)

Product information

Descriptions:

【1.8 INCH LCD SCREEN 】 1.8" large LCD display could you show all real-time charging status,including time,voltage,current power and temperature

【Easy to use】Button Functions Available,Setting Delay Time ("D" Button) and Adjust Current before charging and Memory Charging ("A" Button).

【16A Charging Capacity】With a charging capacity of 16A, this charger can quickly charge your electric vehicles, saving you time and money on fuel costs.

【Lightweight and Portable】Weighing only 1.8kg, this charger is lightweight and portable, making it easy to take with you on the go and charge your electric vehicle wherever you go.it's easy and convenient to charge your electric vehicle, without the need for additional cables or charging stations.

【High Compatibility】Unlike normal EV chargers, our EV chargers are compatible with most electric cars, which meet Type 2 IEC-62169,SAE J1772 type1,GBT standard. All of our products have passed CE certification and TPU certification, and the quality is superior.

Main features:

Input power: 110V-240V

Charging current: 8/10A/13A/16A adjustable. (Use the same current to charge your car next time.)

Output power: 0-3.5KW

Protection level: Type1 IP66 / Type2 IP65 / GB/T IP66 (working state)

Mechanical life: plugging and unplugging>10000 times

Contact bushing: PC+ABS

Number of phases: single phase

Operating temperature: -30 °C ~ + 55 °C

Cable length: 3.5 meters
